LED工礦燈

LED工礦燈

發布日期：2017-08-19 作者：雷舒科技

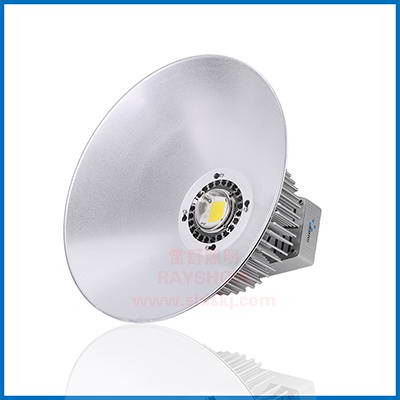

LED high bay light is super energy efficient, using approximately 85% less energy than halogen or incandescent lighting – meaning significant savings on your power bills. LED high bay light also have a much longer lifespan than other types of lighting.

2、 Advantage

Energy Saving and Eco-Friendly；

Shrilled cost on projects;

Large area of lighting；

Longer usage lifetime；

Low power consumption；

Gentle Lighting Emission.

3、 Application

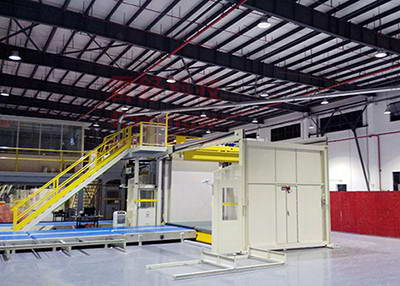

Workshop/Warehouse

Highway toll station/Gas station

Supermarket/Exhibition hall

Gymnasium etc.

LED High Bay Light List

Chip Brand	Model	Driver Brand	Input Volt （V/AC）	Working Volt. （V/DC）	Current （mA）	Efficacy （lm/W）	IP Rate	Chip Watt （Chip）
BRIDGELUX (BXCD)	LS-BG30	MeanWell Invertronics MOSO	90-305	30-36	900	130-140	IP64	30*1W
	LS-BG50				1500			50*1W
	LS-BG80				2300			80*1W
	LS-BG100				3000			100*1W
	LS-BG120				3600			120*1W
CREE (XPL)	LS-CG50	MeanWell Invertronics MOSO	90-305	24-27	1900	150-160	IP64	8*(1-10)W
	LS-CG80			36-39	2000			12*(1-10)W
	LS-CG100			45-48	2000			15*(1-10)W
	LS-CG120			54-57	2000			18*(1-10)W
	LS-CG150			33-36	3950			22*(1-10)W
	LS-CG180			42-45	3850			28*(1-10)W
	LS-CG200			48-52	3800			32*(1-10)W
	LS-CG240			39-42	5600			39*(1-10)W
	LS-CG300			33-36	3950			22(1-10)W2
	LS-CG400			45-48	3800			30(1-10)W2
OSRAM LUW CRDP	LS-OG50	MeanWell Invertronics MOSO	90-305	34-37	1400	130-140	IP64	24*(1-3)W
	LS-OG80			34-37	2100			36*(1-3)W
	LS-OG100			34-37	2800			48*(1-3)W
	LS-OG120			42-46	2800			56*(1-3)W
	LS-OG150			54-58	2800			72*(1-3)W
	LS-OG180			54-58	3500			90*(1-3)W
	LS-OG200			48-56	4200			96*(1-3)W
PHILIPS LUXEON M	LS-PG50	MeanWell Invertronics MOSO	90-305	66-72	700	150-160	IP64	6*(1-10)W
	LS-PG80			99-110	700			9*(1-10)W
	LS-PG100			108-140	700			12*(1-10)W
	LS-PG120			154-168	700			14*(1-10)W
	LS-PG150			204-207	700			17*(1-10)W
	LS-PG180			236-258	700			20*(1-10)W
	LS-PG200			264-267	700			22*(1-10)W
	LS-PG240			324-326	700			27*(1-10)W
	LS-PG300			204-207	700			17(1-10)W2
	LS-PG400			264-267	700			22(1-10)W

1, Ensure power is off before starting installation or attempting any maintenance.

2, Risk of Electric Shock, Suitable for damp locations.

3, All work should be performed by a qualified electrician.

4, This product must be installed in accordance with NEC and your local codes

5, By a person familiar with the construction and operation of the product and hazards involved.

6, Before the connection, make sure all of parts are listed by UL

5、 Failure Handing

Description	Analysis	Solution
LED high bay light is off	1. Check the connection of Power lines	1. Reconnect the power line and measure voltage
	2. LED Driver failure	2. Replace with a new driver
	3. LED chip failure	3. Replace new LED chip
LED high bay light malfunction	1. Check LED driver output	1. Replace with a new driver
LED high bay light malfunction	2. LED chip failure	3. Replace new LED chip
LED high bay light flashing	1. Check LED driver output	1. Replace with a new driver
LED high bay light flashing	2. LED chip failure	3. Replace new LED chip

6、 Safety Information

WARNINGS

To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected, and

Maintained by a qualified electrician only, in accordance with all applicable electrical codes.

To avoid electric shock:

? Be certain electrical power is OFF before and during installation and maintenance.

? Luminaire must be connected to a wiring system with an equipment-grounding conductor.

? Make sure the supply voltage is the same as the rated luminaire voltage.

? Do not operate in ambient temperatures above those indicated on the luminaire nameplate

7、 Warranty

FIVE YEARS FREE MAINTENANCE

8、 Certificate

ISO9001:2008 | UL | FCC | CCC | ROHS | CE

9、 Accessories

The instruction have a copy and certification for each LED high bay light.

10、 Cautions of Installation

1 Make sure no short circuits and cable exposure after installation.

2 Turn the luminaire off and call for repairs when it is not working powered on.

3 Turn the luminaire off and call for repairs when it smokes or sparks.
